BERNINA 735 PRO – the garment sewing specialist
The BERNINA 735 PRO with 5.5 mm stitch width is perfect for precise sewing projects and fine materials. Best of all, the BERNINA Walking Foot #50 comes standard with this machine, providing even greater control when working with challenging or layered fabrics.

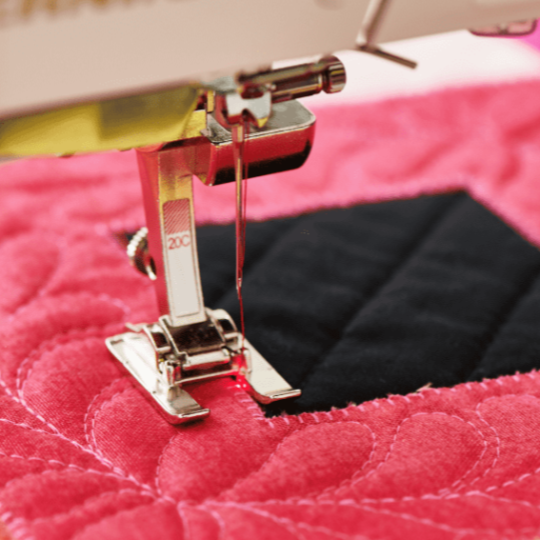

- Works in every needle position
- Indicates the exact needle entry point
- Next generation precision
Enjoy pinpoint precision by seeing exactly where the needle will enter the fabric in every needle position. The BERNINA Pinpoint Laser marks your start and travel points as you sew and embroider.

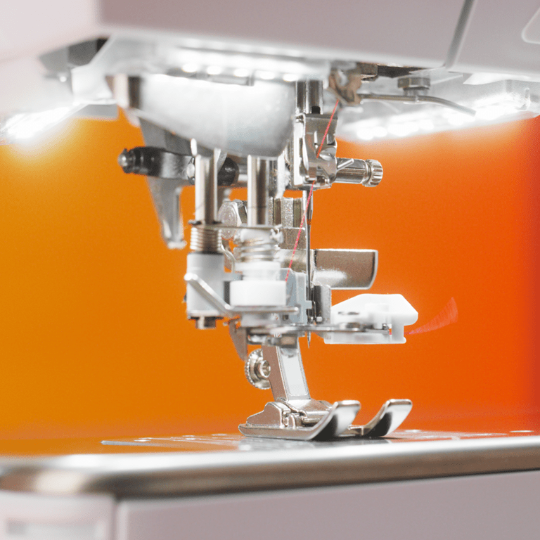

- You are ready for sewing in a breeze
- Simply push a button
- Watch the machine thread the needle
The Automatic Needle Threader helps you get started with a different thread. From a needle size of 70, the upper thread can be automatically threaded into standard embroidery needles. Conveniently and quickly, every time!
- Perfect fabric feed
- Even stitch formation
- The irreplaceable sewing companion

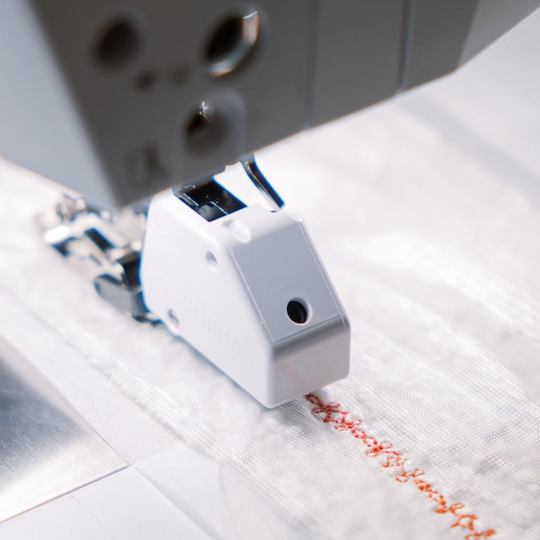

The Walking Foot #50 helps to achieve even fabric feed. This presser foot is especially suitable for machine-quilting straight lines and for accurately joining materials that tend to stick and move around, or which have a lot of stretch.
- Alter stitch length or stitch width
- Alter the needle position
- Alterations of stitch details are remembered
Your personal settings can be saved and retrieved at will and the USB connection even allows you to import and export stitches and stitch patterns or combinations.
- Ideal tension for each stitch type
- Achieve finest stitching results
- A BERNINA innovation
The BERNINA Adaptive Thread Tension adjusts the tension electronically to the selected stitch width, length, speed, and needle position for each stitch.

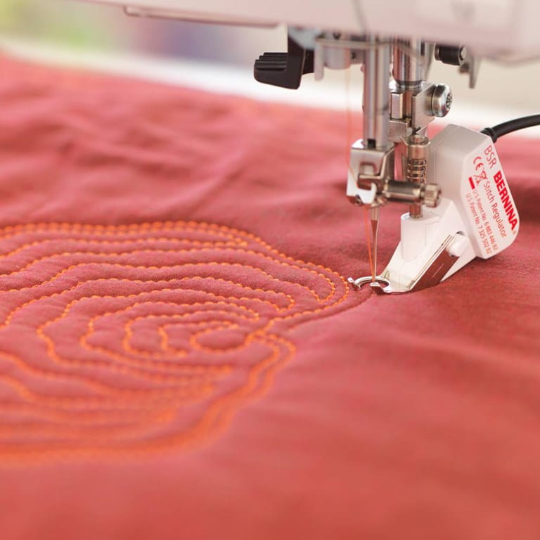

- Achieve perfect, equal-length stitches
- Perfect results no matter which speed
- Perfection comes standard
The BERNINA Stitch Regulator (BSR) guarantees precise stitch quality and perfect results at any speed during free-motion quilting. It is optional with the BERNINA 735 PRO.
- Design transfer from/to V9 Software
- Monitor embroidery process via App
- Real-time status updates remotely
Since WiFi is enabled on the B 735 PRO, you can transfer designs from your BERNINA Embroidery Software 9 (optional) directly to the machine, or vice versa. And thanks to the new BERNINA Stitchout App, the embroidery process can be monitored on your smartphone remotely. The in-app notifications and real-time status updates will make your embroidery more convenient.

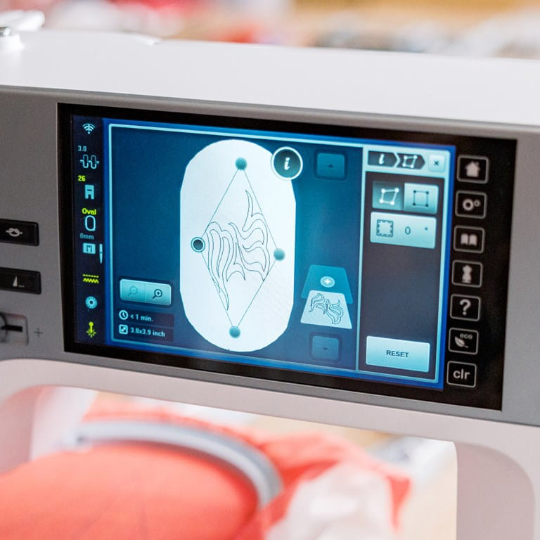

- Define four points on the fabric
- Place the design proportionally
- Or morph to fit within the boundary
With the 4-Point Placement the positioning of your embroidery or quilting design is extremely easy and precise. This new function allows you to place your designs to precisely suit your project. Simply define four points on the fabric in the hoop and the design is placed proportionally or can be morphed to fit the created boundary..
- Embroider endlessly
- Group & ungroup designs
- Rearrange designs
Undo or redo steps while editing or combining designs to return to your initial position. Change the stitchout sequence of design layers or use Rearrange in combination with Group & Ungroup for further editing possibilities. With the Endless Embroidery function, you can easily repeat and align embroider designs to make continuous borders.
- Both horizontally and vertically
- Center, left, right, top, bottom
- Align multiple lettering lines

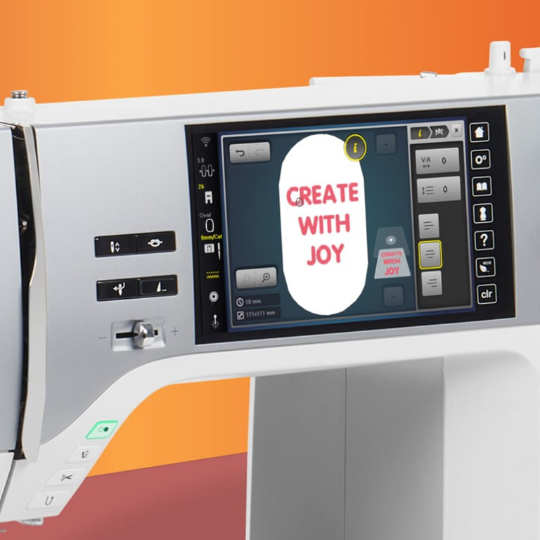

Easily align and distribute embroidery designs horizontally and vertically. Use Multi-line Lettering and Text Alignment to personalize your text placement. With the line break, lettering of up to 10 lines is possible.
- Perfect becomes superb
- Another increase in embroidery speed
- Optionally available Embroidery Module

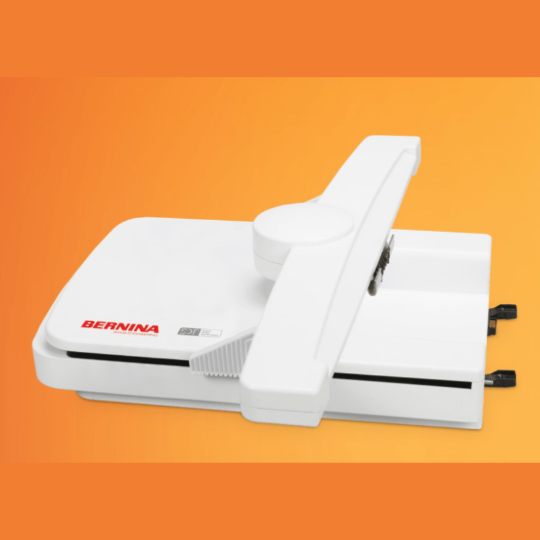

Thanks to the BERNINA stitchprecision Technology, the already enhanced BERNINA Embroidery Module with Smart Drive Technology (SDT) is even faster and the stitch quality even more superior.

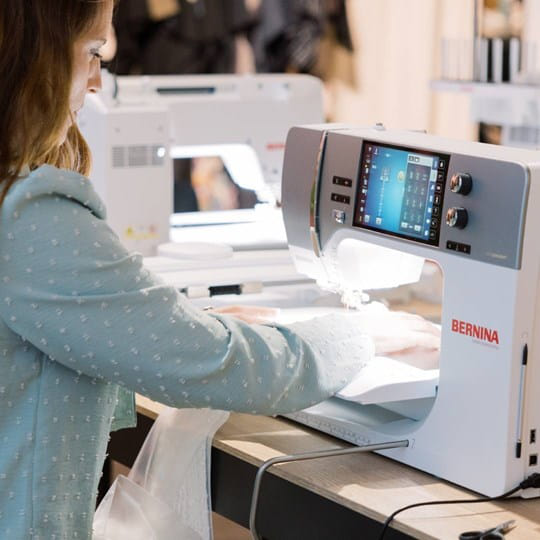

- Automatic thread cutter
- Presser foot lowers automatically
- Automatic Buttonhole
Easily align and distribute embroidery designs horizontally and vertically. Use Multi-line Lettering and Text Alignment to personalize your text placement. With the line break, lettering of up to 10 lines is possible.
- Sew & embroider longer
- Ideally suited for decorative stitches
- More time for your creativity

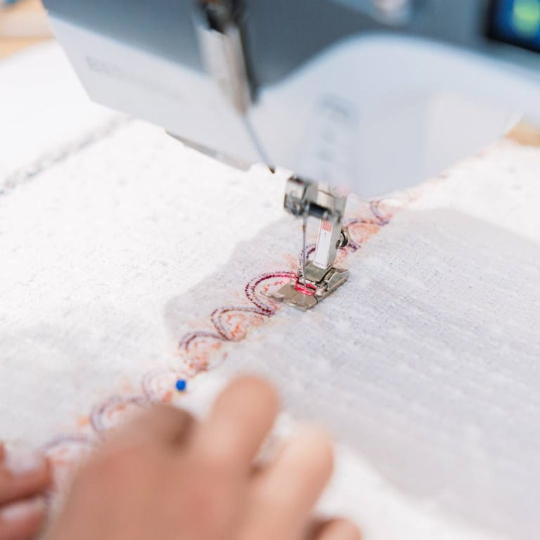

The BERNINA Hook sews high-precision stitches with speeds up to 1,000 stitches per minute. The front loading, easy access Jumbo Bobbin holds up to 70% more thread than standard bobbins, allowing you to sew and embroider longer.

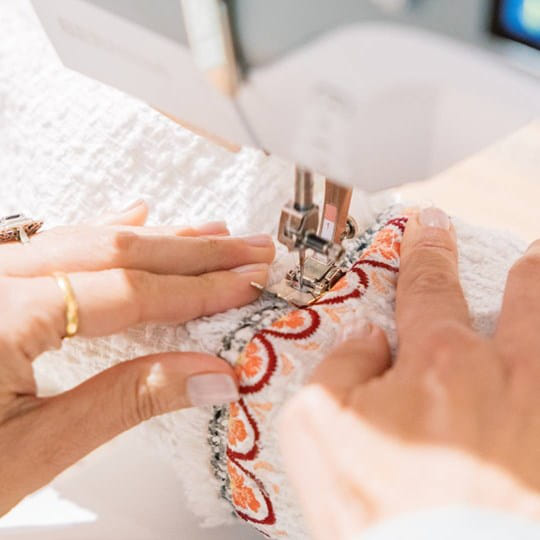

- Next generation stitch precision
- Superior stitch quality
- Even faster embroidery
The B 735 PRO features the next generation BERNINA stitchprecision Technology that makes your sewing, quilting and embroidery experience quieter, more precise, and joyful. Swiss innovations allow for superior stitch quality and up to 33% higher SDT embroidery speed.
General
| Space to the right of the needle | 10" (254mm) |
| Workspace Height) |
5" (127mm)
|
| Centrally Located Color Touch Screen |
7 Inches / 18 cm
|
| Multi-function knobs | |
| LED sewing lights |
30 LED
|
| Automatic Needle Threader | |
| BERNINA Pinpoint Laser | |
| WiFi | |
| stitchprecision Technology | |
| Total Stitch Control | |
| BERNINA Adaptive Thread Tension | |
| BERNINA Dual Feed | |
| BERNINA Hook System | |
| Jumbo Bobbin with 70% moe capacity | |
| Bobbin winding while sewing/embroidering | |
| Powerful DC motor | |
| BERNINA Free Hand System (FHS) | |
| Programmable BERNINA Foot Control | |
| Thread-up Command | |
| Automatic Presser Foot Lifter | |
| Automatic Thread Cutter | |
| Manual Thread Cutters |
3
|
| Adjustable Presser Foot Pressure | |
| Lower Thread Sensor | |
| Upper Thread Sensor | |
| Tutorial | |
| On-screen Help | |
| Eco Mode |
Sewing and Quilting
| Maximum Sewing Speed |
1000spm
|
| Maximum Stitch Width |
5.5 mm
|
| Maximum Stitch Length |
6 mm
|
| Adjustable Needle Positions |
11
|
| Presser Foot Selection | |
| Security Function for Needle and stitch Plate | |
| Automatic Buttonhole/Length Measuring System | |
| Manual multi-step buttonhole | |
| Button Sew-on program | |
| Personal Memory | |
| temporary Altered Stitch Memory | |
| History Function (most recently used stitch patterns) | |
| Creative Consultant Sewing | |
| Pattern Repeat |
1-99
|
| Pattern Begin | |
| Pattern End | |
| Mirror-image Function | |
| Elongation | |
| Triple Stitch | |
| Backstepping | |
| Programmable Securing Function | |
| BSR enabled | |
| BSR 3 Mode | |
| KickStart Function | |
| Start/Stop Button (stitching without foot control) | |
| Freearm Sewing | |
| Total Number of Sewing Stitch Patterns (incl. alphabets) |
1,753
|
| Alphabets |
6
|
| Decorative Stitches |
400
|
| Button Sew-on Program |
1
|
| Buttonholes/Eyelets |
13/2
|
| Practical Stitches |
32
|
| Quilting Stitches |
37
|
| Darning Programs |
2
|
Embroidery
| Maximum embroidery speed (stitches per minute) |
1000
|
| Embroidery Area |
15.7" x 8.3" (400mm x 210mm)
|
| Freearm Embroidery | |
| Built-in embroidery designs | 400 |
| Embroidery alphabets | 10 |
| Customizable Quilt Designs (.bqm files) |
30
|
| Onscreen editing of designs: positioning, mirroring, rotating, scaling, combining | |
| Change Design Size Proportionally/Non-Proportionally | |
| Align/Distribute embroidery designs | |
| Multi-line Lettering and Align | |
| Endless Embroidery | |
| QWERTY keyboard | |
| WordArt | |
| Drag and Drop | |
| Absolute Check Design Positioning | |
| 4-Point Placement with Morphing | |
| 2-point Placement | |
| Lock scaling | |
| Check Design Size | |
| Group/Ungroup | |
| Rearrange designs | |
| Adjust Stitch Density | |
| Change Stitch Type | |
| Basting | |
| Color Resequence | |
| Stitch Design as Single/Multi-Color | |
| Personal Memory for Saving Embroidery Designs | |
| Programmable Jump Stitch Cutting | |
| Smart Secure | |
| Invisible Secure | |
| Thread Away Embroidery | |
| Creative Consultant Embroidery | |
| Multi-format Reading |
EXP, DST, PES, PEC, JEF, SEW, PCS, XXX
|
| BQM Format Reading | |
| Adjust Stitches Per Inch (BQM) | |
| Direct Design transfer to/from BERNINA Embroidery Software 9 via WiFi | |
| Automatic Hoop Recognition | |
| View Stitch-out Time, Thread Colors, Size, Stitches | |
| BERNINA Stitch-out App compatible | |
| Stitch Sequence Control | |
| Position Recall | |
| Jumbo Hoop Compatibility | |
| Maxi Hoop Compatibility | |
| Mega Hoop Compatibility | |
| Midi Hoop Compatibility | |
| Small Clamp Embroidery Hoop Compatibility | |
| Medium Clamp Embroidery Hoop Compatibility | |
| Large Freearm Embroidery Hoop Compatibility |
Standard Accessories for Sewing
| Reverse Pattern Foot #1/1C | |
| Buttonhole Foot with Slide #3A | |
| Zipper Foot #4/4D | |
| Jeans Foot #8/8D | |
| Open Embroidery Foot #20/20C | |
| Walking Foot #50 | |
| Slide-on Table | |
| Knee lever/Free Hand System (FHS) | |
| Embroidery Module L with Smart Drive Technology (SDT) | Optional |
| Dust Cover | |
| Accessory Box |
