Sold from 2009 to 2018.

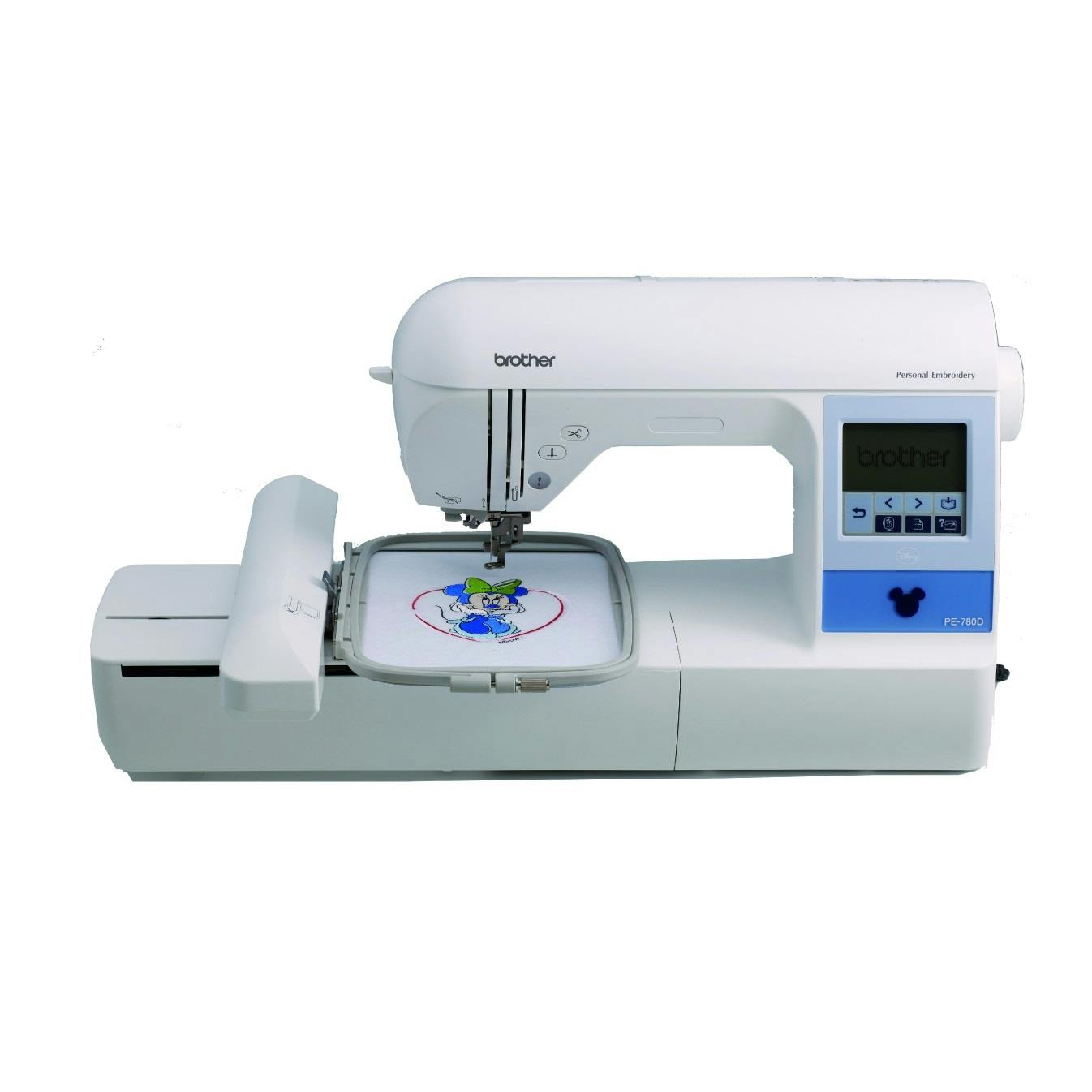

A happy addition to the Brother embroidery family, the PE780D features 188 built-in embroidery patterns including 52 Disney® designs. It's easy to learn and fun to use! Now you can embellish everything from home décor to T-shirts with one of the additional 188 built-in embroidery patterns which include delicate scrollwork, intricate florals, classic quilt patterns and so much more. The PE780D recognizes all Brother embroidery memory cards that work within the maximum 5" x 7" design area.
Features
- 188 built-in embroidery designs including 52 designs featuring Disney® characters
- 6 built-in embroidery lettering fonts
- Easily import designs from your memory stick via the built-in USB port
- Built-in embroidery card slot enables use of 1000’s of optional Brother embroidery designs
- On-screen embroidery editing on monochrome LCD touch screen
- Maximum embroidery area of 5” x 7”
- Built-in frame shapes and border styles to frame your embroidery
- Available at Authorized Innov-ís Dealers Only
Basic Features
| LCD Size (Horizontal x Vertical) inches | 2.7" x 1.4" backlit LCD Touch Screen Display |
| Adjustable Screen Brightness Settings | Yes |
| Screensaver | No |
| On-Screen Help | Yes |
| Built-in Languages | Yes |
| Zoom Function | No |
| On-Screen Editing | No |
| Lighting | 2 LEDs |
| Table | No |
| Needle Threading System | Automatic |
| Independent Bobbin Winding Motor | No |
| Thread Sensor | Yes, upper and bobbin threads |
| Thread Sensor On/Off | No |
| Automated Upper and Lower Thread Cutting | Yes |
| Quick-Set™ Bobbin | Yes |
| Built-in Memory | Yes |
| USB | 1 |
| Memory Card | No |
| Cable | Embroidery Card |
Embroidery Features
| Maximum Embroidery Area (X x Y) | 5" x 7" with included hoop |
| Maximum Embroidery Speed (Stitches Per Minute) | 650 |
| Speed Adjustment | No |
| Adjustable Design Icon Size Setting | No |
| Built-in Embroidery Designs (Non-License) | 136 |
| Built-in Embroidery Designs featuring Disney/Pixar® Characters | 52 |
| Built-in Alphabet Fonts | 6 |
| Built-in Alphabet Designs | No |
| Monogramming Font Styles | No |
| Built-in Frame Designs | 10 Shapes x 12 Stitch Patterns |
| InnovEye™ Technology | No |
| Snowman® Embroidery Positioning Marker | No |
| Thread Wiper | No |
| Resume Function | No |
| Trial Position/Layout Function | Yes |
| Built-in Border Function & Designs | No |
| Sewing Decorative Stitches with Embroidery Arm Attached | No |
| Appliqué Creator Function | No |
| Automatic Feed Thread Cutting | Yes |
| Curving Text on Screen Editing | No |
| Space Reduction among Embroidery Alphabets | No |
| Pattern Rotating | 1, 10 or 90 Degrees |
| Drag and Drop Editing | No |
| Onscreen Automatic Density Adjustment (STB) | No |
| My Custom Design™ Feature | No |
| Color Shuffling™ Function | No |
| Print and Stitch™ Technology | No |
| Programmable Monochrome Embroidery | No |
Carton Contents
| Accessory Storage | No |
| Included Accessory Feet | Embroidery Foot |
| Other Included Accessories | Embroidery arm, accessory kit with seam ripper, bobbins (3), scissors, needle set, cleaning brush, screw drivers, spool caps (3), spool net, embroidery bobbin thread, power cord, operation manual |
| Included Embroidery Hoops | 1 (5" x 7") Additional hoop sizes available; see Optional Accessories |
Other
| Warranty | 2/6/25 year premium warranty. See premium warranty for details. |
| Machine Dimensions (H x W x D) | 11.42" x 7.87" x 17.32" |
| Machine Weight | 16.3 lbs |
| Shipping Dimensions (H x W x D) | 17.28" x 16.77" x 21.26" |
| Shipping Weight | 27.5 lbs |
| UL/CSA Listed | Yes, 110v |
