COMPUTERIZED EMBROIDERY MACHINE.

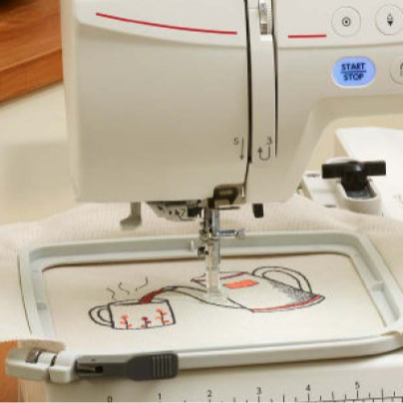

Embroidery is perfect for creating your unique style, both for lending an additional decorative touch to your sewing creations or for customizing existing pieces. The elna eXpressive 802 is the compact embroidery machine that will support you with your new projects.
Compact yet packed with features, the elna eXpressive 802 is an embroidery-only opening up a host of possibilities for bringing your creations to life.
Robust and silent, they offer perfect stitching, comfortable space and convenient features:
- built-in, swing type embroidery arm.
- 3.5" color touch screen and control panel.
- built-in needle threader Smart System.
- upper and bobbin thread sensors.
- 2.5 MB built-in memory and USB port.
Embroidery is perfect for creating your unique style and for customizing existing pieces with our 802:
- embroidery size 5" x 5" (140 x 140 mm).
- 274 embroidery designs.
- alphabet in 11 fonts and monograms in 2 styles.
- 17 editing functions on the machine.
- EXCLUSIVE free-arm embroidery.
Technical
| Machine size | 17" x 11.8" x 10.6" (432 × 301 × 270 mm) |
| Machine weight | 20lbs (9.1 kg) |
| Embroidery unit | Integrated with swing-type arm |
| Free arm | |
| Sewing space | 7.2" x 4.3" (183.5 x 110 mm) |
| Screen type (size) | 3.5″ color touch screen + touch panel |
| Rotary hook | Horizontal with clear bobbin cover |
| Bobbin winder | Auto declutch |
| Bobbin threader | Easy and guided system with built-in thread cutter |
| Needle threader | Built-in |
| Upper thread sensor | |
| Bobbin thread sensor | |
| Lighting | 2 LED lamps in 2 areas |
| Accessory storage | Arm |
| Built-in memory | 2.5 MB |
| USB port | 1 |
Function Buttons
| Start / Stop | |
| Automatic thread cutter | |
| Stitch / Embroidery pattern selection | Touch screen |
Embroidery
| Number of embroidery designs | 274 |
| Embroidery fonts | 11 |
| Monogramming | 2 and 3 letters |
| Maximum embroidery area | 5.5" x 5.5" (140 x 140 mm) |
| Maximum embroidery speed | 660 stitches/min. |
| Embroidery editing functions | Directly on the machine |
| Programmable thread trimming | After jump or color change |
| Free arm embroidery | Optional hoops |
Accessories
- Embroidery foot P
- Special bobbin holder for embroidery
- Embroidery hoop 140 x 140 mm (SQ14e) with template
- Bobbins x 4
- Screwdriver
- Lint brush
- Scissors
- Needle set
- Spool holders (small x 2 and large x 2)
- Additional spool pin
- Touch panel stylus
- Soft cover
