COMPUTERIZED EMBROIDERY MACHINE.
Our little wonder with great talent! Compact yet packed with features, the elna eXpressive 808 is a combination sewing and embroidery machine, opening up a host of possibilities for bringing your creations to life. Robust and silent, it offers perfect stitching, comfortable space and a broad range of sewing and embroidery applications.>
Compact yet packed with features, the elna eXpressive 802 is an embroidery-only opening up a host of possibilities for bringing your creations to life.
Robust and silent, they offer perfect stitching, comfortable space and convenient features:
- built-in, swing type embroidery arm.
- 3.5" color touch screen and control panel.
- built-in needle threader Smart System.
- upper and bobbin thread sensors.
- 2.5 MB built-in memory and USB port.

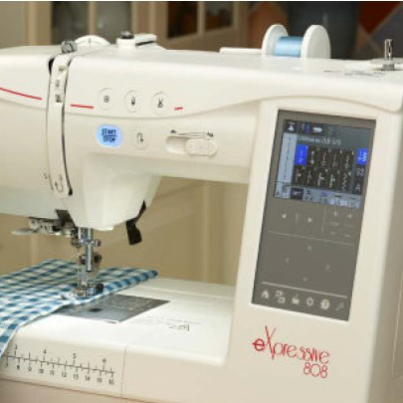

The eXpressive 808 sewing and embroidery machine is the perfect tool to support you with a broad range of sewing applications:
- 300 stitches in 7 mm width with alphabet in 3 fonts and 15 one-step buttonholes.
- 5 direct-access functions, including automatic thread cutter and lock stitch.
- 7-piece feed dog with drop feed sensor.
- programming and storing of pattern combinations.
- clip-on presser foot and one-step needle plate easy conversion systems.

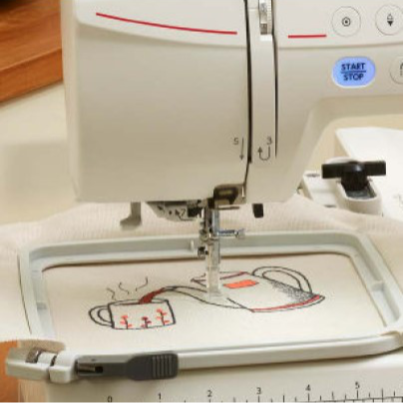

Embroidery is perfect for creating your unique style and for customizing existing pieces with our 802:
- embroidery size 5" x 5" (140 x 140 mm).
- 274 embroidery designs.
- alphabet in 11 fonts and monograms in 2 styles.
- 17 editing functions on the machine.
- EXCLUSIVE free-arm embroidery.
Technical
| Machine size | 17" x 11.8" x 10.6" (432 × 301 × 270 mm) |
| Machine weight | 20lbs (10 kg) |
| Embroidery unit | Integrated with swing-type arm |
| Free arm | |
| Sewing space | 7.2" x 4.3" (180 x 110 mm) |
| Screen type (size) | 3.5″ color touch screen + touch panel |
| Rotary hook | Horizontal with clear bobbin cover |
| Bobbin winder | Auto declutch |
| Bobbin threader | Easy and guided system with built-in thread cutter |
| Needle threader | Built-in |
| Upper thread sensor | |
| Bobbin thread sensor | |
| Thread tension control | Manual |
| Feed dog | 7-piece / Retractable |
| Drop feed sensor | |
| Presser foot pressure adjustment | Manual |
| Extra-high presser foot position | Manual |
| Presser foot | Clip-on easy conversion system |
| Needle plate | Magnetic easy conversion system |
| Lighting | 2 LED lamps in 2 areas |
| Accessory storage | Arm |
| Stitch reference chart | Booklet |
| Built-in memory | 2.5 MB |
| USB port | 1 |
Function Buttons
| Start / Stop | |
| Reverse sewing | |
| Automatic-lock stitch | |
| Up / Down needle position | With memory function |
| Automatic thread cutter | |
| Speed Control Slider | |
| Stitch / Embroidery pattern selection | Touch screen |
Sewing
| Number of stitches | 300 |
| Maximum stitch width (mm) | 7mm |
| Maximum stitch length (mm) | 5mm |
| Maximum embroidery area | 5.5" x 5.5" (140 x 140 mm) |
| Maximum embroidery speed | 660 stitches/min. |
| Maximum sewing speed | 860 stitches/min. |
| One-step buttonholes | 15 one-step (12 sensor) |
| Alphabet – Typefaces | 3 |
| Pattern combination | Up to 100 stitches |
Embroidery
| Number of embroidery designs | 241 |
| Embroidery fonts | 11 |
| Monogramming | 2 and 3 letters |
| Maximum embroidery area | 5.5" x 5.5" (140 x 140 mm) |
| Maximum embroidery speed | 660 stitches/min. |
| Embroidery editing functions | Directly on the machine |
| Programmable thread trimming | After jump or color change |
| Free arm embroidery | Optional hoops |
Accessories
- Standard foot A
- Zipper foot E
- Satin foot F
- Blind hem foot G
- Overedge foot C
- Overlock foot M
- 1/4’’ seam foot O
- Automatic buttonhole foot R
- Straight stitch needle plate
- Seam ripper
- Foot controller
- Stitch reference chart (booklet)
- Embroidery foot P
- Special bobbin holder for embroidery
- Embroidery hoop 140 x 140 mm (SQ14e) with template
- Bobbins x 4
- Screwdriver
- Lint brush
- Scissors
- Needle set
- Spool holders (small x 2 and large x 2)
- Additional spool pin
- Touch panel stylus
- Soft cover
