We designed our eXtend 864air to offer you a totally smooth overlocking experience. This superior model features both exceptional capabilities and solutions for super-easy threading. You can relax, start your project in no time and fully enjoy all the benefits of an overlocker.
The new air threading system makes it effortless to thread your machine. Combined with the built-in needle threader, this feature saves time for seamless sewing. The 8-piece feed dog system ensures smooth and perfect feeding of all types of fabric.

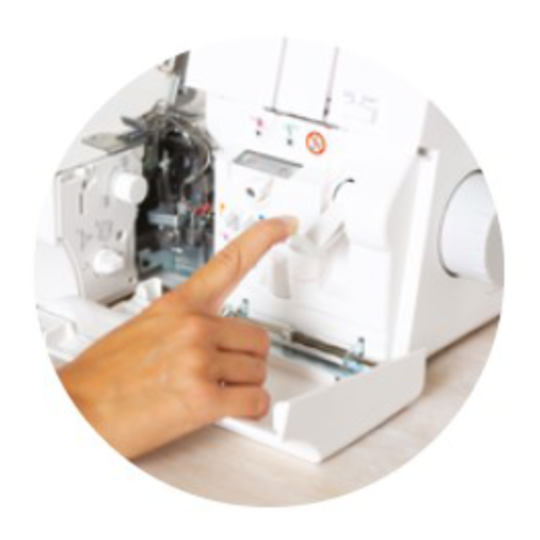

The special air threading system makes it effortless to thread your machine. You can thread both the upper and lower looper by just inserting the thread into each port and pressing the threading lever : a blow of air pushes the thread through the looper and you’re done!

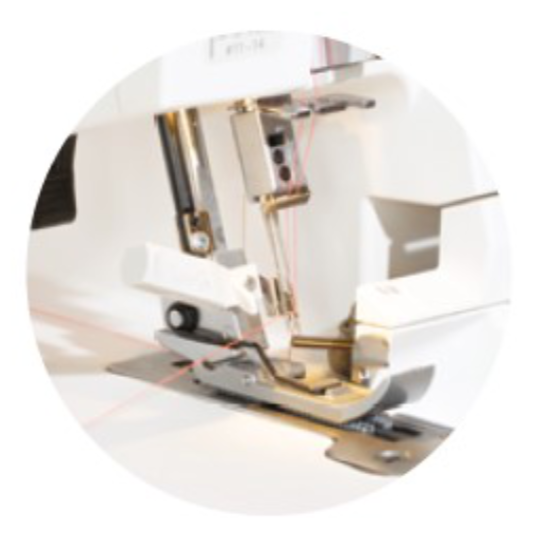

A handy built-in needle-threader puts an end to fiddly threading and you can quickly get started or change threads as you sew. Simply slide the lever of the needle threader down and easily thread the right and left needle.

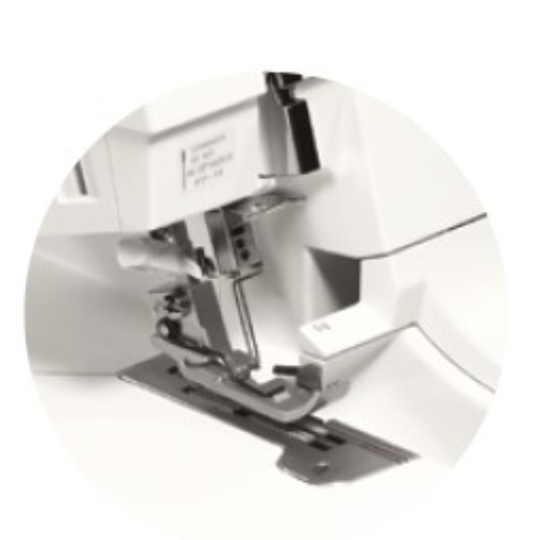

The higher number of pieces in the feed dog of the elna eXtend 864air compared to other models ensures perfect and smooth feeding of all sorts of fabric, from lightweight to thick, as well as jersey and other stretch knit fabrics.

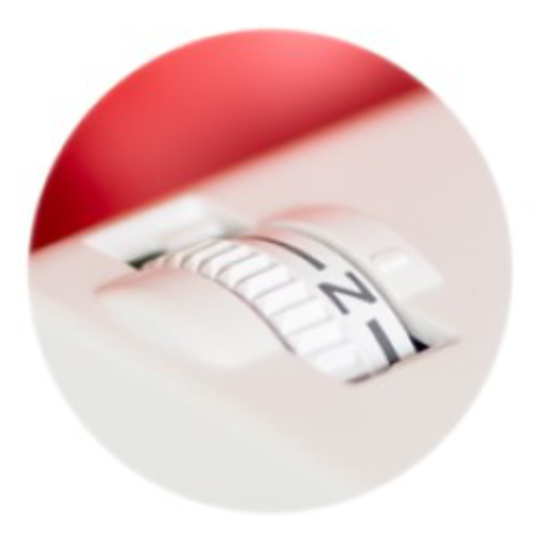

You can adjust the pressure of the presser foot to the typem of fabric that you are sewing. The possibility of selecting five different levels enables you to handle a wide range of materials without any problem. For normal sewing you can simply dial ‘N’.
Features
- Air-threading system
- 2/3/4-thread overlocking
- 13 programs
- Built-in needle-threader
- Adjustable differential feed
- 5-level presser foot pressure dial
- 8-piece feed dog system
- Built-in 2-thread converter
- Built-in thread cutter
- Maximum sewing speed adjustable up to 1300 spm
GENERAL
| Bed Type |
Flat Bed
|
| Lower looper threader |
One push blast air threading system (manual)
|
| Needle-threader |
Built-in
|
| Color-coded threading guide | |
| Thread-cutter |
Built-in
|
| Feed dog |
8 pcs.
|
| Thread tension control |
Manual
|
| Foot pressure adjustment Manual Dial |
5 positions
|
| Presser foot height |
5.5 mm
|
| Clip-on presser foot system | |
| Instant rolled hem device | |
| 2-thread converter |
Built-in
|
| Safety device |
Looper and Side covers / Presser foot lifter
|
| Lighting |
1 built-in white LED lamp in 1 location
|
| Number of spool pins |
4
|
| Telescopic thread antenna | |
| Carrying handle | |
| Machine size |
W350 x H270 x D280 mm
|
| Machine Weight |
7.5 kg
|
SEWING
| Number of programs |
13
|
| Number of threads |
2/3/4 threads
|
| Number of needles |
1/2
|
| Stitch length |
1 to 5 mm
|
| Adjustable differential feed |
0.5 to 2
|
| Upper knife opening |
10 mm
|
| Adjustable cutting width using left needle and not using left needle |
5.5 to 7.5 mm, 3.3 to 5.3 mm
|
| Maximum speed |
1300 stitches/min.
|
STITCH PROGRAMS
| 4-thread programs |
overlock, stretch knit, decorative overedging, gathering
|
| 3-thread programs |
overlock regular and wide, rolled hem, narrow hem, picot hem, flatlock, pintuck
|
| 2-thread programs |
flatlock, rolled hem
|
